reflective chevron panels
MORE PICTURES AT THE BOTTOM OF THIS PAGE.

Satisfying the NFPA 1901 requirements for Chevron Stripes on Diamond Plated areas can be a challenge.

DIAMOND PLATE DOTS - 100 (3/4") Dots Per Sheet

Our Reflexite V98 reflective dots make this job easy. Our dots are 3/4" in diameter and fit nicely in the flat area between the diamonds. They will work on virtually all diamond plate designs. Dots are easy to align and apply. Installation is quick and easy. Just peel and stick to a clean surface.


OVERLAY PANELS - Quantity 1 = 36 overlays (1 square foot of coverage)

Our overlay panels or appliques (see picture above) cover even more surface area and are also easy to align and install due to their unique design. They only fit the diamond plate pictured above with the pointed ends. The little overlays cover 4 flat areas at one time which makes installation much quicker.


CHEVRON STRIPS - Quantity 1 = 24 strips (1 square foot of coverage)

Our "Chevron Strips" are the quickest and easiest way to create reflective chevron stripes on diamond plate or tread plate. (Based on our experience installation is about 4 times quicker than dots.) Our chevron strips for diamond plate also create cleaner nicer looking chevrons. These custom designed shapes are cut from Reflexite/Orafol V98 prismatic material. This material is specifically designed for emergency vehicles. It is a single layer patented film and will not delaminate like other brands. Reflexite invented prismatic reflective films and is the leader in this type of material. It is the only film we use for our custom shapes. Click Here to use our diamond plate shape calculator.

NOTE - to assure a proper fit, you should test a free sample on your diamond plate before purchasing. When you order our sample pack you will get one of each and they will be marked A, B, C or D. This will insure that you get a perfect fit. (see link below)

This product comes in four styles, A, B, C and D. Style A is for diamond plate where the tips are exactly 1" plus 1/32 apart. Style B is for diamond plate where the tips are exactly 1" apart. Style C is for diamond plate where the tips are 1" less 1/32" apart. Style D is for diamond plate where the tips are 1" less 1/16" apart.

To install our "chevron strips" you simply peel, position, and press on. Each strip takes just a few seconds to install. The design is made to go around the diamonds.

Testing the strips before purchasing is highly recommended. To get a sample pack of our diamond plate reflective products cut from V98 material just email me at steve@reflectivestore.com or call 850-934-3157.

We sell this product based on the square foot coverage. One square foot of coverage or 24 strips runs $18. This makes it simple to estimate how many strips you need. Just measure the area you need to stripe and calculate how many square feet you have. If you have 10 square feet you would need 5 square feet of red strips and 5 square feet of fluorescent lime.


All of our diamond plate reflective solutions are based on Reflexite Reflective V98 Prismatic Films. V98 is the newest addition to the Reflexite product line. It is conformable, repositionable and clean removable. Prismatic films are the brightest of all the reflective tapes available and far exceed NFPA standards. Since these are custom cut and not returnable we recommend that you let us send you a free sample so you can test the product on your diamondplate. You can email us at the link above or call 850-934-3157 for a "Free Sample Pack". This will help you determine with solution is best for your application.

To read our article on how to estimate the number of shapes you will need for your diamond plate click here.


We currently carry the following Diamond Plate Reflective Products.

3/4" V98 Fluorescent Lime Circles (Dots) - $10.00 (sheet of 100)
3/4" V98 Red Circles (Dots) - $10.00 (sheet of 100)

V98 Fluorescent Lime Overlay Appliques - $18.00 (sheet of 36 - 1 Square Foot Coverage)
V98 Red Overlay Appliques - $18.00 (sheet of 36 - 1 Square Foot Coverage)

V98 Fluorescent Lime Chevron Strips - $18.00 (sheet of 24 Strips - 1 Square Foot Coverage)
V98 Red Overlay Appliques - $18.00 (sheet of 24 Strips - 1 Square Foot Coverage)
NOTE - Our Chevron Strips come in 4 styles - A , B , C , D to accommodate different spacings on diamond plate.


If you wish to order with a check or money order you can send payment along with a description of what you are ordering to

Reflective Inc.
1610 Guam Lane
Gulf Breeze, Fl 32563




reflective diamond plate dots circles

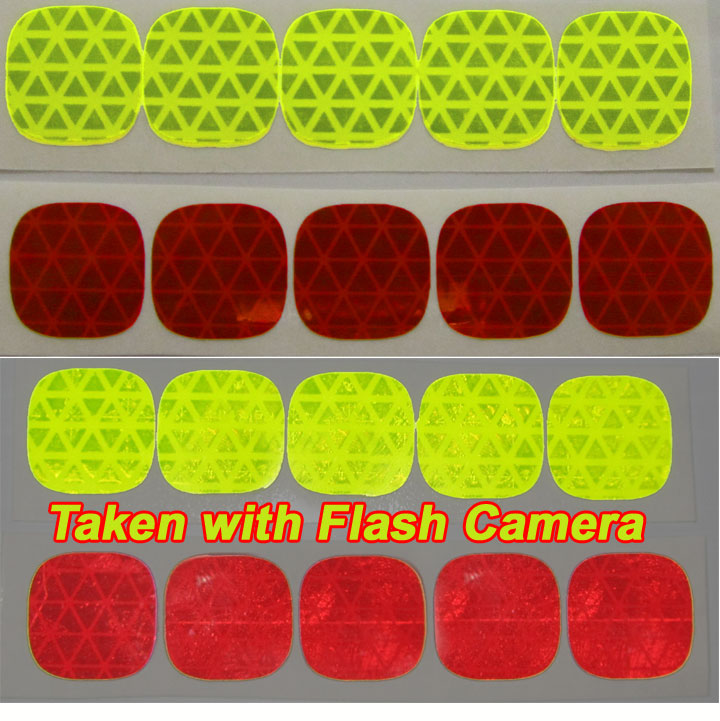

reflective diamond plate dots squares

FOR CUSTOM ORDERS PLEASE CONTACT ME BY e-mail OR CALL STEVE COLE AT
850-934-3157 AND I CAN QUOTE ANYTHING YOU NEED.
